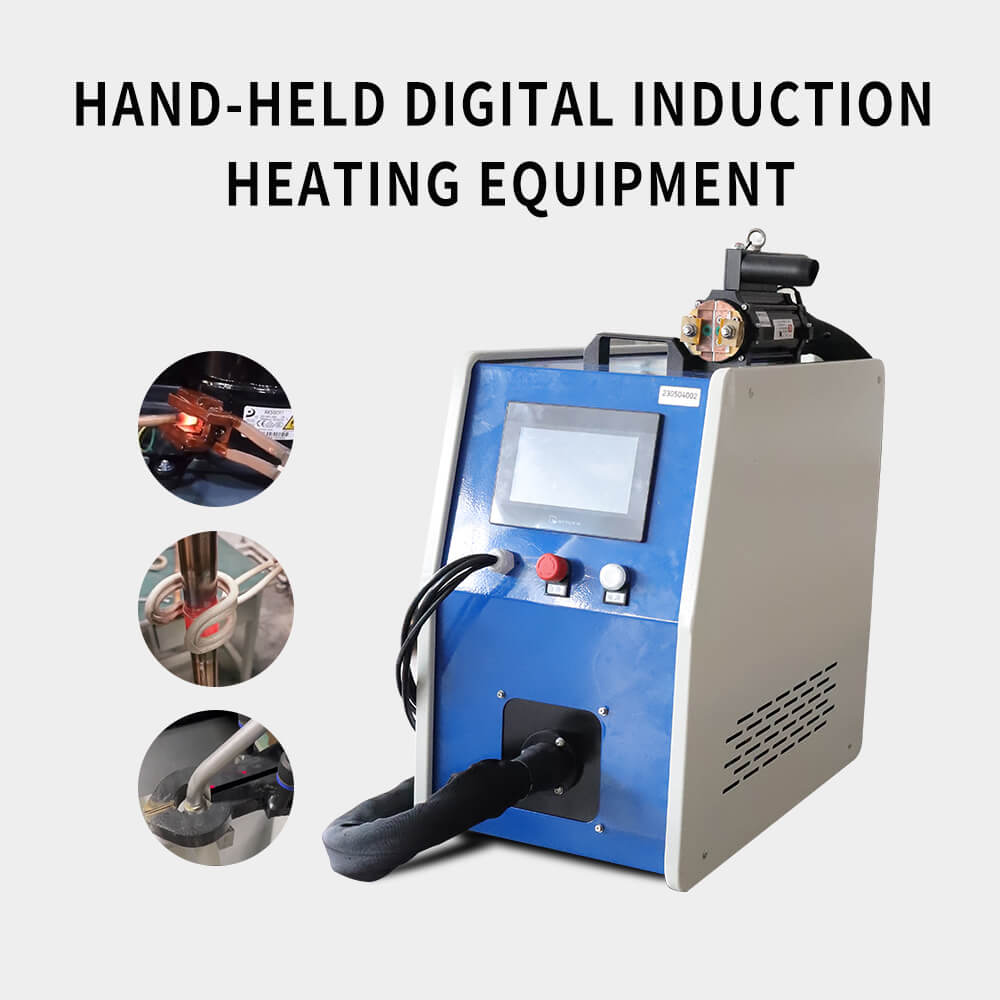

NameHand-held Digital Induction Heating Equipment
Control ModeAll digital circuit mode
Working ModeManual Mode,Automatic Mode,Temperature Control Mode(Optional)
Number of

Heating Current Settings

The number of Stored Workpiece Parameters10/Mode
Content of

Working Status

Alarm InterfaceOvercurrent,overpressure,under water,undervoltage,phase loss,overheat,etc.
Output Power3-30KVA                        3-35KVA                        3-40KVA                        3-50KVA                        3-60KVA                        3-80KVA
Output Frequency Range10~60KHz                       10~20KHz                       10~60KHz                       10~35KHz                       10~20KHz                       10~20KHz
Length of Main Extension Cable2-5M                            2-5M                            2-5M                            2-5M                            2-5M                            2-5M
Input Voltage380V±10%                      380V±10%                      380V±10%                      380V±10%                      380V±10%                      380V±10%
Input Frequency50/60Hz                        50/60Hz                        50/60Hz                        50/60Hz                        50/60Hz                        50/60Hz
Input Power Factor0.95                              0.95                              0.95                              0.95                              0.95                              0.95
Minimum Circuit Breaker3P-63A                           3P-63A                           3P-63A                           3P-80A                           3P-125A                           3P-125A
Maximum Inlet Water Temperature35℃                              35℃                              35℃                              35℃                              35℃                              35℃
Water Pressure Max/Min4/6bar                            4/6bar                            4/6bar                            4/6bar                            4/6bar                            4/6bar

Environment Temperature

+5℃~+35℃                       +5℃~+35℃                       +5℃~+35℃                       +5℃~+35℃                       +5℃~+35℃                       +5℃~+35℃
Dimension(L*W*H) 600×400×620 600×400×620 600×400×620

Functional Features:

1. Easy to move:

For complex and inaccessible workpieces or workshop locations,hand-held type is small –sized,simple operation and move easily,it can easily do induction brazing.

2. Efficient working environment:

Induction heating is quiet and comfortable,it won’t cause the temperature surrounding environment to rise.

3. Digital program control:

All digital application functions can be realized.

4. Accurate operation:

High frequency,stable heating output,no vibration during working heating,accurate welding position,the minimun diameter0.1mm of metal can be welded and the sensor can be customized according to the different shape of the workpiece.

5. Strong controllability:

The controllable induction heating and accurate heat transfer reduce the risk of overheating,thus avoiding the damage to the workpiece and reducing the loss to the minimum extent.

6. Easy to operate:

When brazing,it is necessary to carry or store bulk workpieces near brazing equipment,it is an ideal choice for online brazing.


1. It’s applied to refrigeration and HVAC industry, automobile industry, household electrical appliance industry, medical equipment and so on.
2. Applicable process: valve parts of air conditioning refrigeration, refrigerator freezer pipeline, accessories of solar, parts of compressor, washing machine (pipe connections, tube and shell connection, pipe and valve connection), auto parts of the connection between the evaporator and the compressor, such as soldering process of the short circuit loop of the motor.

Q: Why should I trust your company and choose you?

A: We are a professional induction heating equipment, set research and development, production, sales, service as one of the high-tech enterprises. We have 18 years of professional production and equipment research and development experience, is China’s most professional brazing machine, heating complete sets of automation equipment manufacturers.

Q: How do I set up your machine

A: We have paper installation instructions and videos, and we’ll teach them until you learn them.

Q: Do you have any equipment in stock?

A: Yes, we have some of our best-selling models in stock for immediate delivery upon payment

Q: Can you provide free samples of the machines?

A: Sorry, we can”t give you A free sample because of the high price of the machines. Our machines are sure to meet your requirements and give you satisfaction

Q: What is your quality control?

A: We have A professional team responsible for product testing and packaging before delivery, you can rest assured to buy.

Q: How many days will it arrive after I buy the machine?

A: Usually10-15days (except holidays), but 20-30 days for large machines

Q: What should I do if the machine breaks down?

A: Within the one year warranty of the machine, we will provide you with spare parts free of charge. For customers who buy the machines, if they have any problems with the machines, they can take pictures or record videos for us. We will guide the customer to carry out repairs.

Q: What about the warranty?

A: All of our products have a one-year warranty. During the warranty period, spare parts will be replaced free of charge. We provide lifelong technical support and other assistance.

Packaging Details:
1. Wooden case for export
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer’s requirements
