Parameters:

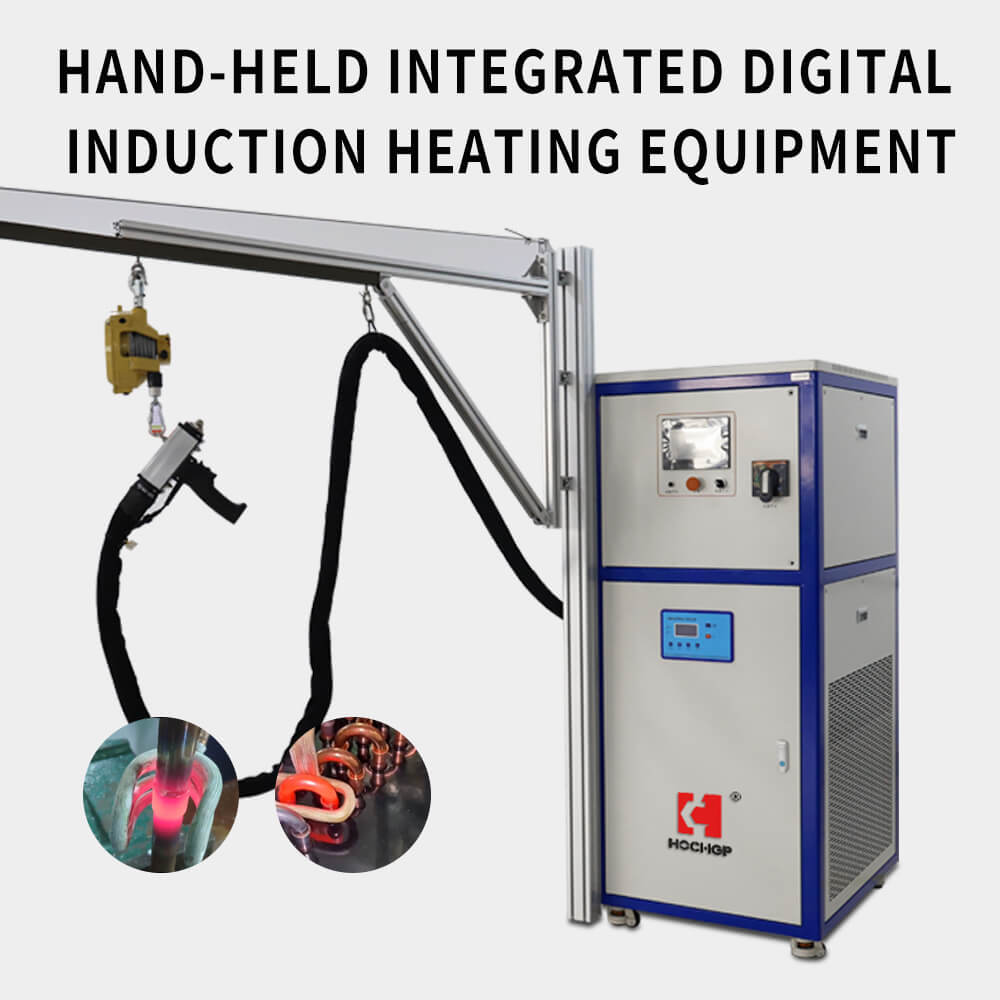

| Name | Hand-held Integrated Digital Induction Heating Equipment |
| Control Mode | All digital circuit mode |
| Working Mode | Manual Mode,Automatic Mode,Temperature Control Mode(Optional) |
| Number of Heating Current Settings | 5-stage |
| The number of Stored Workpiece Parameters | 10/Mode |
| Content of Working Status | Time,Current,Temperature(Optional) |
| Alarm Interface | Overcurrent,overpressure,under water,undervoltage,phase loss,overheat,etc. |
| Model | PHC-S-A-30 | PHC-S-A-35 | PHC-S-A-40 |
| Output Power | 3-30KVA | 3-35KVA | 4-40KVA |
| Output Frequency Range | 10~60KHz | 10~20KHz | 10~60KHz |
| Length of Main Extension Cable | 2-5M | 2-5M | 2-5M |
| Input Voltage | 380V±10% | 380V±10% | 380V±10% |
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Input Power Factor | 0.95 | 0.95 | 0.95 |
| Minimum Circuit Breaker | 3P-63A | 3P-63A | 3P-63A |
| Maximum Inlet Water Temperature | 35℃ | 35℃ | 35℃ |
| Water Pressure Max/Min | 4/6bar | 4/6bar | 4/6bar |
| Working Environment Temperature | +5℃~+35℃ | +5℃~+35℃ | +5℃~+35℃ |
| Dimension(L*W*H) | 1100×700×1700 | 1100×700×1700 | 1100×700×1700 |
Functional Features:
1. Independent heat dissipation and cooling cycle
Structurally integrated with the cooling system,it saves space and is convenient to use.
2. Easy to move:
For complex and inaccessible workpieces or workshop locations,hand-held type is small –sized,simple operation and move easily,it can easily do induction brazing.
3. Efficient working environment:
Induction heating is quiet and comfortable,it won’t cause the temperature surrounding environment to rise.
4. Digital program control:
All digital application functions can be realized.
5. Accurate operation:
High frequency,stable heating output,no vibration during working heating,accurate welding position,the minimun diameter0.1mm of metal can be welded and the sensor can be customized according to the different shape of the workpiece.
6. Strong controllability：
The controllable induction heating and accurate heat transfer reduce the risk of overheating,thus avoiding the damage to the workpiece and reducing the loss to the minimum extent.
7. Easy to operate:
When brazing,it is necessary to carry or store bulk workpieces near brazing equipment,it is an ideal choice for online brazing.
Applications:
1. Hole opening, riveting, drilling and other process processing of materials in the automotive industry.
2. Welding operations of various complex metal parts, various hardware products and other products in the home appliance industry.
3. Kitchen, household appliances, advertising, molds, stainless steel doors and windows, handicrafts, household items, furniture, auto parts and many other industries.
Handheld high-frequency welding has the advantages of fast welding speed, high welding quality, small heat-affected zone, and easy operation. It can be applied to the welding of various metal materials, such as copper, aluminum, stainless steel, etc. This method can also realize automated welding, improve production efficiency, reduce labor intensity, and is suitable for large-scale production.
Q: Why should I trust your company and choose you?
A: We are a professional induction heating equipment, set research and development, production, sales, service as one of the high-tech enterprises. We have 18 years of professional production and equipment research and development experience, is China”s most professional brazing machine, heating complete sets of automation equipment manufacturers.
Q: How do I set up your machine
A: We have paper installation instructions and videos, and we’ll teach them until you learn them.
Q: Do you have any equipment in stock?
A: Yes, we have some of our best-selling models in stock for immediate delivery upon payment
Q: Can you provide free samples of the machines?
A: Sorry, we can”t give you A free sample because of the high price of the machines. Our machines are sure to meet your requirements and give you satisfaction
Q: What is your quality control?
A: We have A professional team responsible for product testing and packaging before delivery, you can rest assured to buy.
Q: How many days will it arrive after I buy the machine?
A: Usually10-15days (except holidays), but 20-30 days for large machines
Q: What should I do if the machine breaks down?
A: Within the one year warranty of the machine, we will provide you with spare parts free of charge. For customers who buy the machines, if they have any problems with the machines, they can take pictures or record videos for us. We will guide the customer to carry out repairs.
Q: What about the warranty?
A: All of our products have a one-year warranty. During the warranty period, spare parts will be replaced free of charge. We provide lifelong technical support and other assistance.
Packaging Details:
1. Wooden case for export
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer’s requirements
